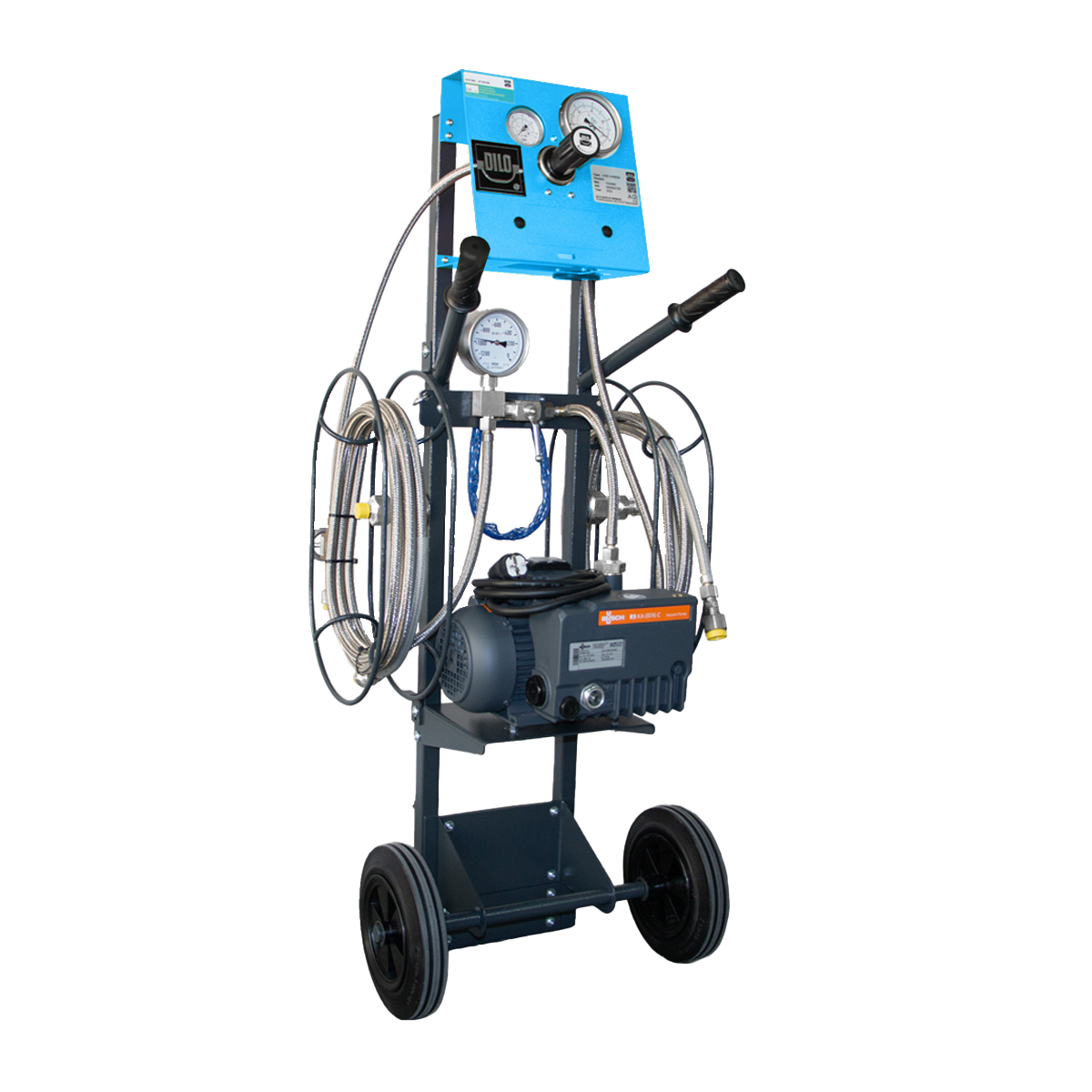

Helium Gas Cylinder Cart | Filling and Air Evacuation | with Vacuum Pump 11.2 CFM (19 m3/h) | DILO | HE-3-001-4-R002A

• Dual-Function: Integrated Air Evacuation and Helium Filling in a single mobile cart

• Vacuum Performance: High-capacity vacuum pump 11.2 CFM (19 $m^3/h$at 60 Hz) for a final vacuum of < 0.75 torr  (1 mbar).

• Precision Monitoring:

  • Primary Gauge: 0 – 4,569 PSI /  (0–315 bar)

  • Secondary Gauge: 0 – 58 PSI  /  (0–4 bar)

  •  indication in bar, PSI, and kPa.

• Leak-Free Connections: Equipped with DILO DN8 and DN20 couplings

• Safety First: Integrated 4.0 bar safety valve

• Cylinder connection:  W 21.8 x 1/14"

• Field-Ready Build: Large 10" (250 mm) Solid tire wheels, integrated hose reel, and a 6-meter wire-braided hose.

• Power: 220–240 V operation

HE-3-001-4-R002A | Helium Gas Cylinder Cart & Air Evacuation Station

Pure Helium. Zero Air. Total Control. Don't compromise your gas purity by introducing atmospheric air into your system. The HE-3-001-4-R002A is a dual-function cart designed for professional-grade air evacuation and precision Helium filling.

By utilizing the integrated 19 $m^3/h$ vacuum pump to pull systems down to < 1 mbar, you ensure that no air/gas mixture is produced during the filling process. Built on a rugged mobile frame with self-sealing DILO couplings, this cart allows you to move between job sites and handle expensive Helium with zero gas loss and absolute confidence.

At In-Gas, our mission is simple: Don’t be a Gashole—Vacuum First, Fill Second! Stop Mixing Your Profits with Thin Air.
