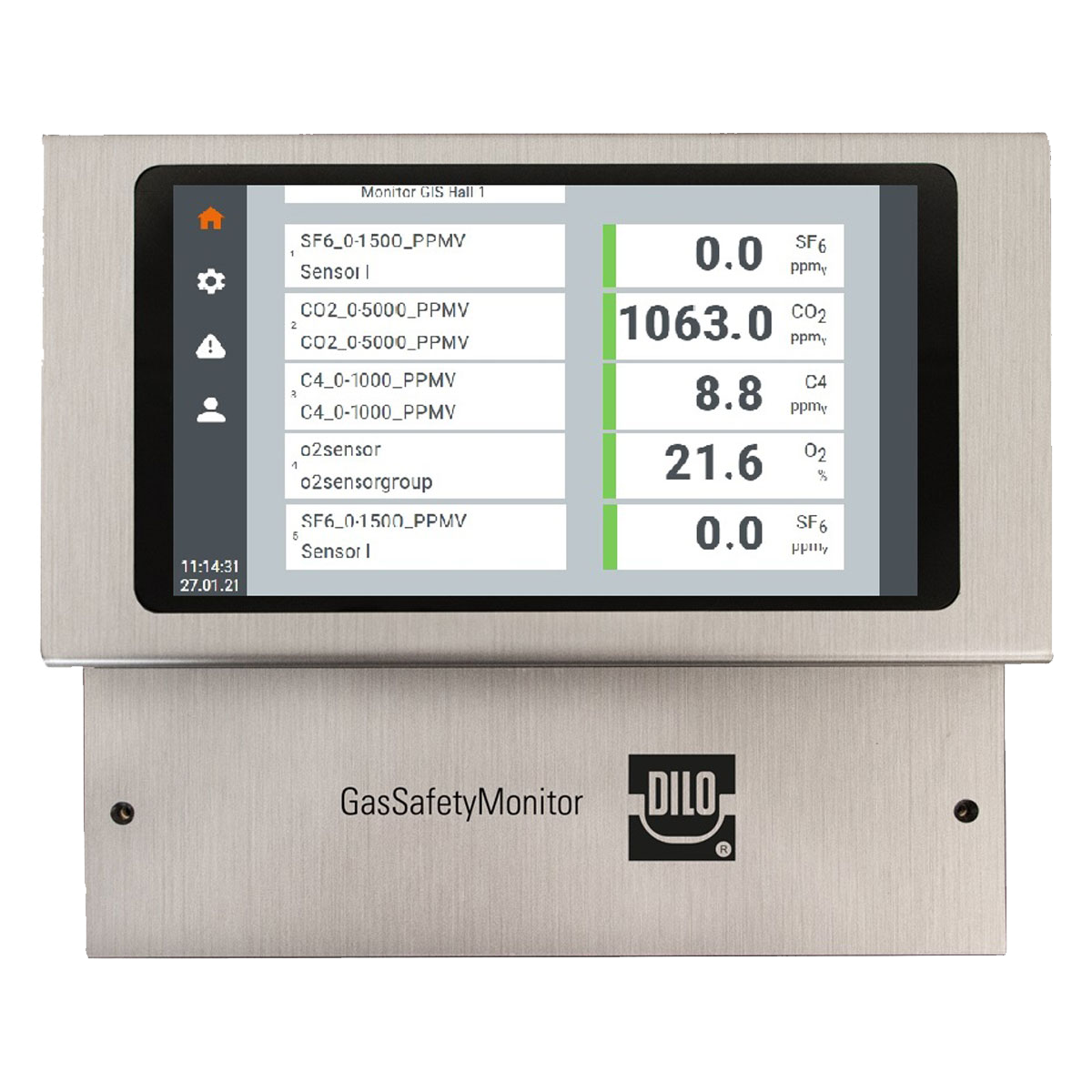

3-026-R200 | Gas Safety Monitor: Centralized 32-Channel Display & Control Hub

One Screen. Total Facility Awareness. Absolute Control. Managing the safety of a large-scale gas facility shouldn't be a game of hide-and-seek. The Gas Safety Monitor is the central command unit for your entire Room Monitoring System, providing a real-time, consolidated view of gas concentrations from up to 32 independent sensors.

More than just a display, this hub acts as your facility’s first line of defense. With integrated potential-free relays, you can automate your safety response—triggering external sirens, flashing beacons, or emergency ventilation systems the moment a threshold is crossed.

The Technical:

• Scalability: Monitor and manage up to 32 sensors from a single location.

• Intelligent Automation: Built-in relays allow for seamless integration with external warning devices and facility management systems.

• Plug-and-Play Integration: Streamlined installation of sensors via Ethernet, with three ports providing direct PoE (Power over Ethernet) support.

• Data Transparency: A vivid 7" (17.8 cm) Color Touchscreen displays live values, registers messages, and stores historical data for safety audits.

• Universal Power: Field-ready for any facility with a wide operating range of 80–264V AC.

• Built-in Alert: Integrated 75 dB alarm for immediate local notification.

• Display: 7" High-Resolution Color Touchscreen.

• Connectivity: 4x RJ45 Ethernet sockets; expandable via PoE switches.

• Relay Output: Potential-free contacts for external control logic.

• Operating Temperature: -10 to +40 °C (14 to 104 °F).

• Protection Class: IP 41.

• Dimensions: Approximately 9.4" x 8.4" x 3.0" (238 x 213 x 77 mm).

• Weight: 1.5 lbs (0.7 kg).
